Inverting Closed loop Amplifier
Shoaib Wahgra
23:12
0
Inverting Closed loop Amplifier

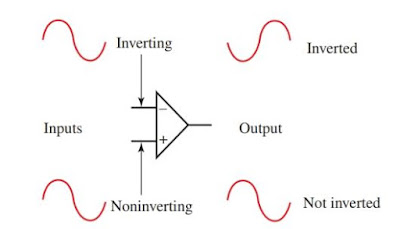

In inverted amplifier input signal apply on inverted input and Ri resistor connect with - inverted terminal and Rf connect with output and inverting terminal.
The output is show
Proteus PDF Here
Non Inverting Closed Loop Amplifier
Shoaib Wahgra
22:52
0
Closed loop amplifier circuit > <

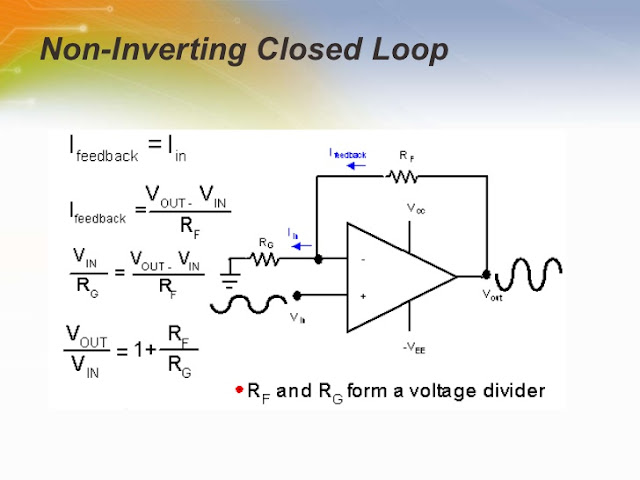

In Closed loop amplifier circuit we used a 2 Resistor for output feedback. Rs Resistor is use on inverted input terminal and 2nd resistor used with output and Rs resistor terminal and ground The Inverting terminal which is connect with resistor in Non inverting amplifier and apply signal on + Non inverting terminal.
Proteus circuit PDF is Here
Wednesday, 5 February 2020
Proteus Projects
Shoaib Wahgra
20:09
0
Non Inverting Amplifier
Input and Output Waves Signal
Common Mode Input Amplifier
Download all in one file PDF Click
Off Set Transistor
In Off Set Mode use Variable Resistor connect this resistor to -Vcc Variable point and two fix point is connected with pin no 1 and 5 of Op-Amp operational amplifier and set the vale of resistor and test the output voltage.
